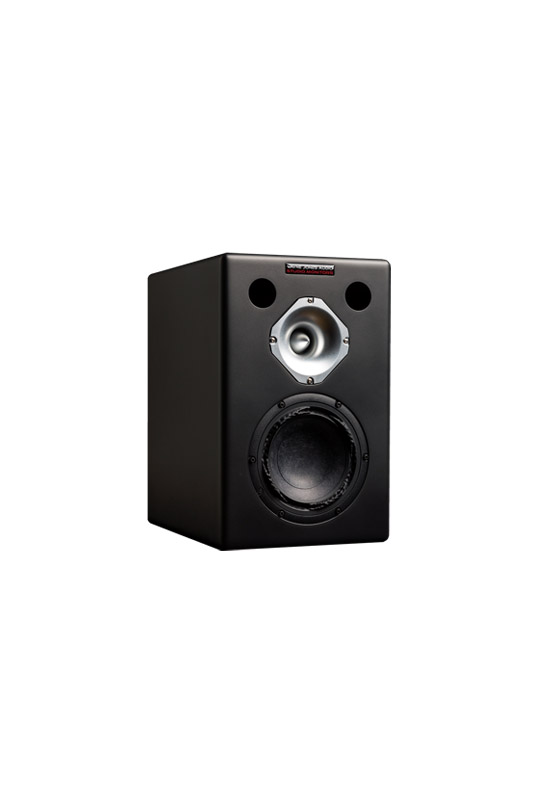

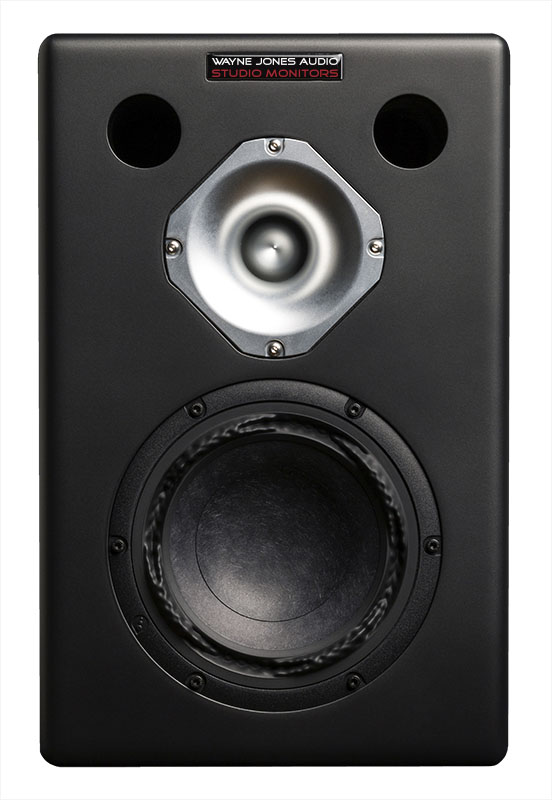

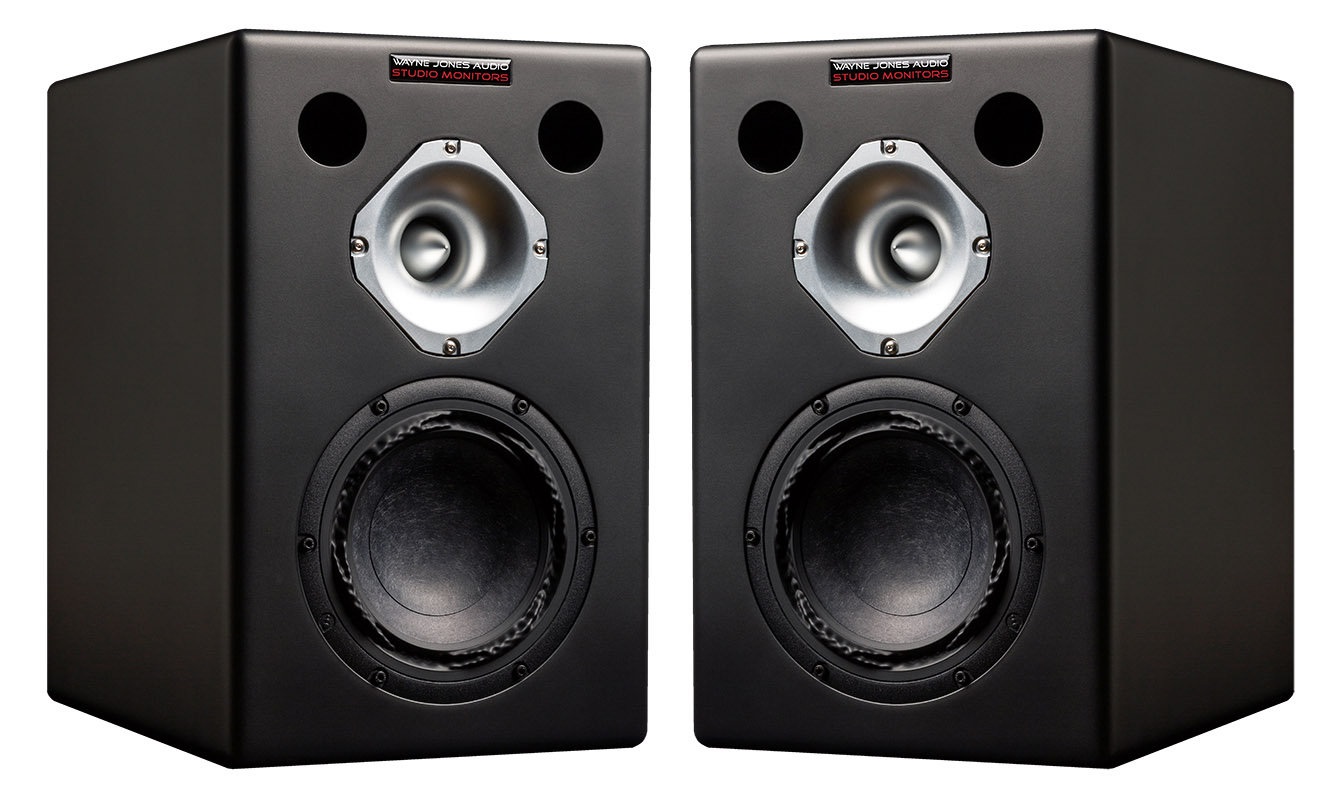

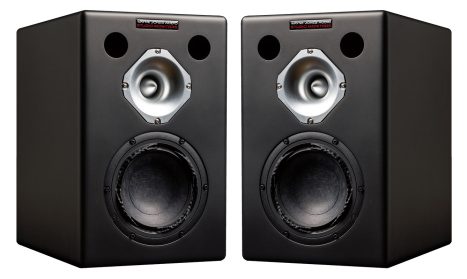

Wayne Jones Audio 6.5″ 2-Way Powered Studio Monitors – “When Size Really Matters”
High powered, mid/near-field 2-way studio monitor. 6.5, long stroke, ultra-low distortion driver with incredible clarity, musical with unbelievably tight low end reproduction. Bullet-style machined aluminium tweeter with a 1.46” voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.
Perfect size for Broadcast Vehicles & Home Studios
**N.B. SoundID Reference From Sonarworks not included with Sale items**
Visit Wayne Jones Audio for more Details, Reviews & Photos ►
Only 2 Remaining in Stock
-
Description
Cabinet Specifications
- Finish – Stunning 2 Pak Automotive paint finish with high gloss clear coats
- Colour – Graphite
- Woodwork 18mm MDF
Cabinet Specs – for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1: Bass-Mid – 500 Watts RMS @ 4 ohms
- Channel 2: Tweeter – 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Drivers: Bass-Mid 6.5 inch, long stroke, ultra low distortion with incredible clarity, musical with tight bottom end
- Magnet: Ferrite
- Tweeter: Machined Aluminium 1.46″ Voice coil, Kapton
- Crossover point: 2.25 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC
DSP & Control Plate Features
- Inputs: XLR Analogue Balanced (with SPDIF option)
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue / SPDIF
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- H39 x W25 x D34 cm
- H15.3 x W9.8 x D13.4 inches
Single Monitor Weight:
- 13 kg
- 29 lbs
Shipping Dimensions & Weights:
Shipped as one pair on a 1/2 size pallet (included in shipping weight & dimensions).
H 80 x W 60 x D 58 cm
35 kg / 77.2 lbs
**N.B. SoundID Reference From Sonarworks not included with Sale items**
Visit Wayne Jones Audio for more Details, Reviews & Photos ►
Additional information
| Weight | 35 kg |
|---|---|
| Dimensions | 80 × 60 × 58 cm |
| Shipping | Above dimensions and weight are shipping measurements for a pair of monitors (including shipping pallet). Shipping costs are calculated on the Checkout page. N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees. Products shipped from Melbourne, Australia. Shipped as one pair on a 1/2 size pallet (included in shipping weight & dimensions) International shipping is by DHL |
| Colour | Graphite |
| Warranty | Warranty is 3 year limited on all parts & Labour |
