Send stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)
USD $6,569.00 (exc. Tax)

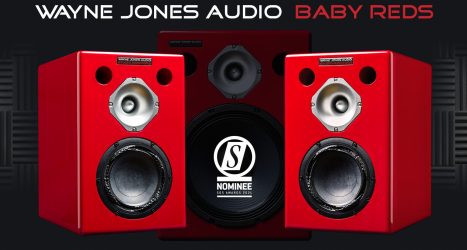

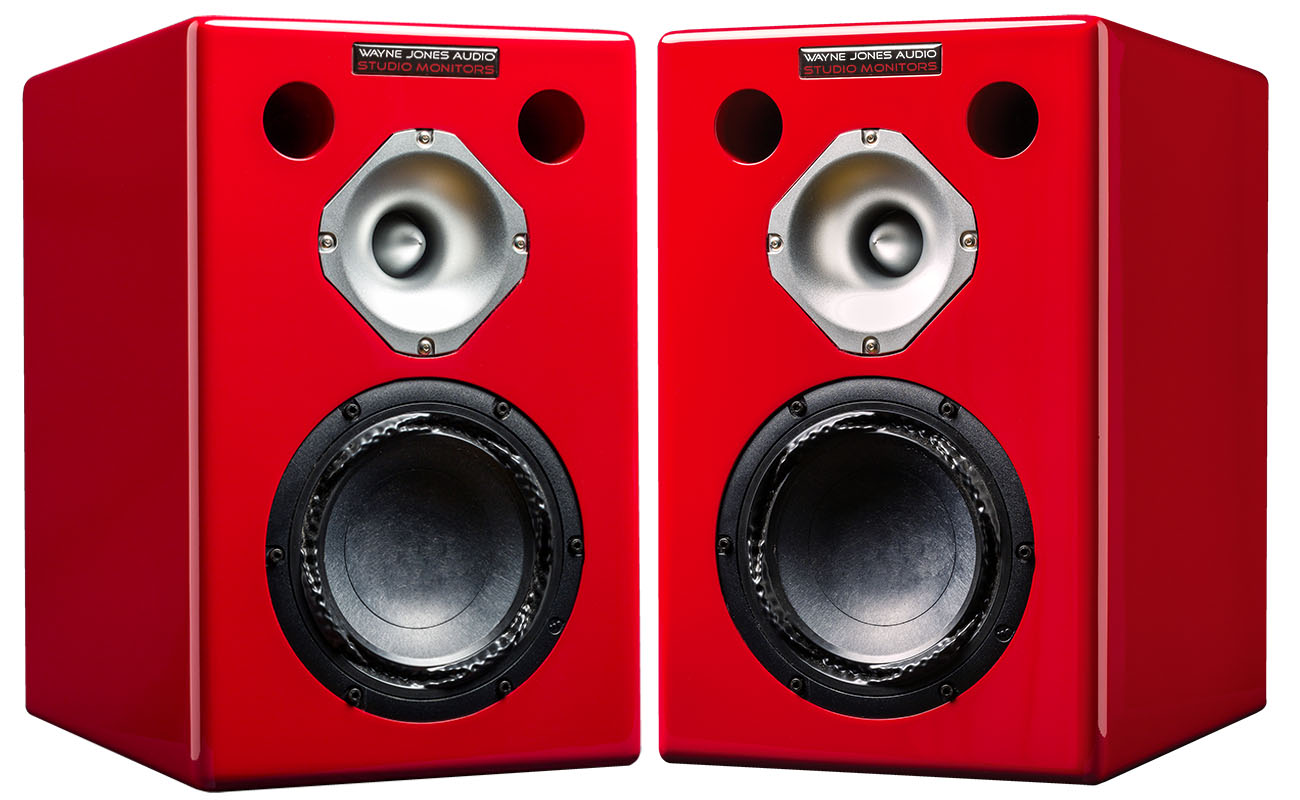

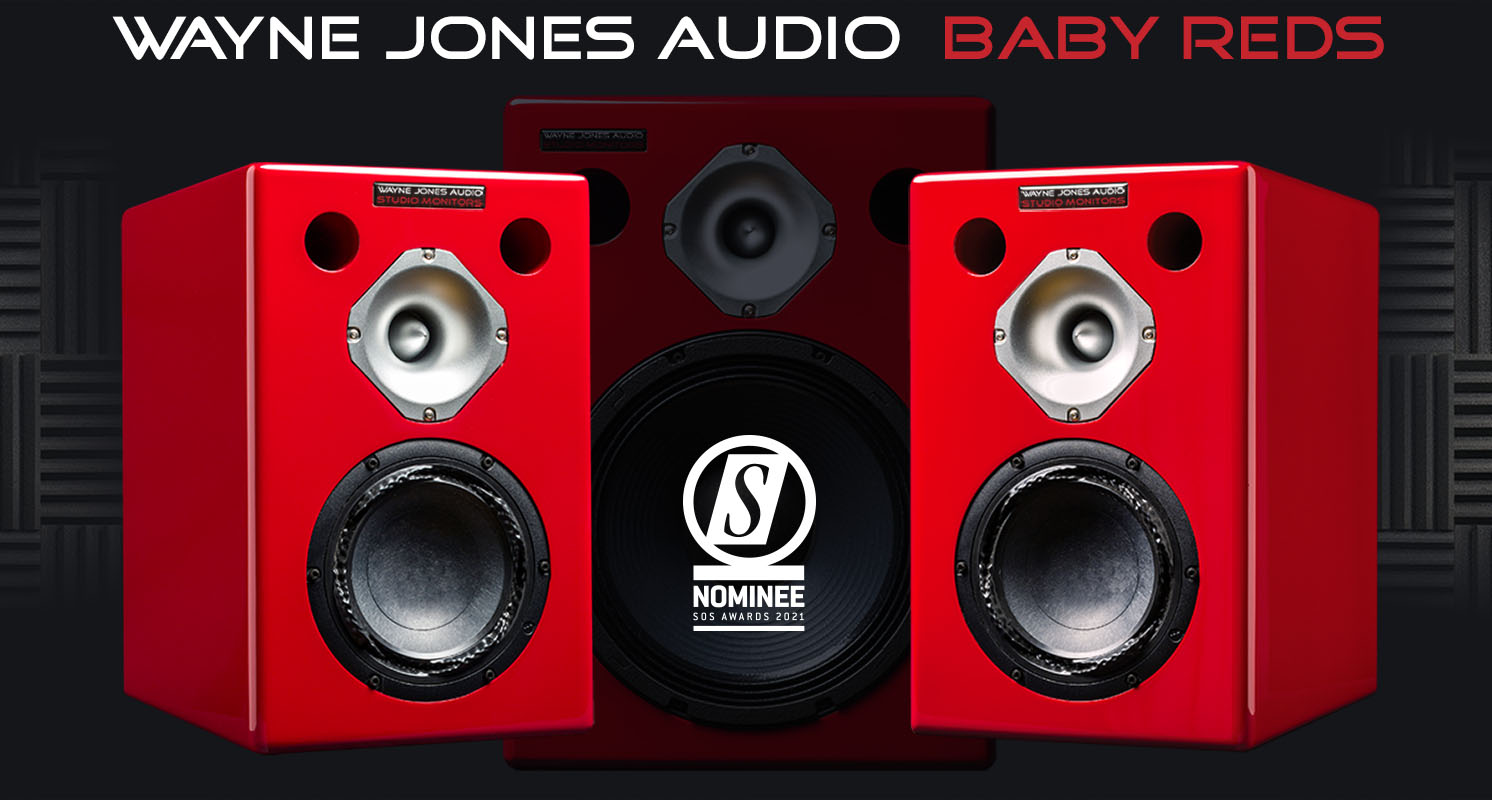

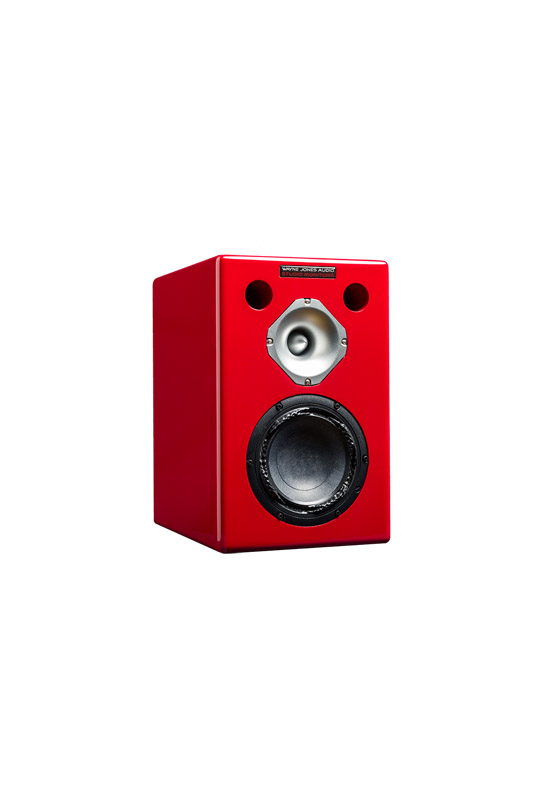

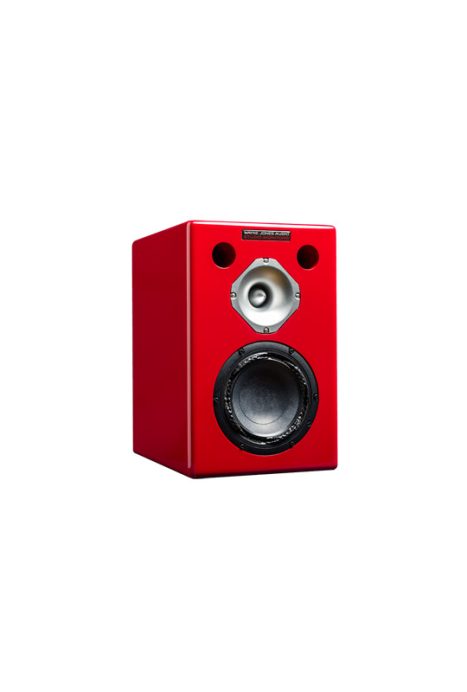

Wayne Jones Audio Baby Reds – “When Size Really Matters”
High powered, mid/near-field 2-way studio monitor. 6.5, long stroke, ultra-low distortion driver with incredible clarity, musical with unbelievably tight low end reproduction. Bullet-style machined aluminium tweeter with a 1.46” voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.
Perfect size for Broadcast Vehicles & Home Studios
Available in custom colors. Match your décor, Contact GBody Sound Lab to order your preferred color.
Visit Wayne Jones Audio for more Details, Reviews & Photos ►
-
Description
Cabinet Specifications
- Finish – Stunning 2 Pak Automotive paint finish with high gloss clear coats
- Colour – Red or Graphite
- Available in custom colors. Match your décor, order your preferred color
- Woodwork 18mm MDF
Cabinet Specs – for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1: Bass-Mid – 500 Watts RMS @ 4 ohms
- Channel 2: Tweeter – 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Drivers: Bass-Mid 6.5 inch, long stroke, ultra low distortion with incredible clarity, musical with tight bottom end
- Magnet: Ferrite
- Tweeter: Machined Aluminium 1.46″ Voice coil, Kapton
- Crossover point: 2.25 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC
DSP & Control Plate Features
- Inputs: XLR Analogue Balanced
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- H39 x W25 x D34 cm
- H15.3 x W9.8 x D13.4 inches
Single Monitor Weight:
- 13 kg
- 29 lbs
Shipping Dimensions & Weights:
Shipped as one pair on a 1/2 size pallet (included in shipping weight & dimensions).
H 80 x W 60 x D 58 cm
35 kg / 77.2 lbs
Packaged with SoundID Reference & Microphone From Sonarworks
The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program. Read More ►
Visit Wayne Jones Audio for more Details, Reviews & Photos ►
Additional information
| Weight | 35 kg |
|---|---|
| Dimensions | 80 × 60 × 58 cm |
| Shipping | Above dimensions and weight are shipping measurements for a pair of monitors (including shipping pallet). Shipping costs are calculated on the Checkout page. N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees. Products shipped from Melbourne, Australia. Shipped as one pair on a 1/2 size pallet (included in shipping weight & dimensions) International shipping is by DHL As these are custom & hand made in Australia there may be a wait time of up to 8 weeks from time of order. |
| Color | Red, Graphite, Order Custom |
| Warranty | Warranty is 3 year limited on all parts & Labour |
