Send stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)
USD $18,899.00 (exc. Tax)
“They may be in the wall but they sound like headphones”
“The Big Reds have to be heard to be believed”
Now you don’t have to adjust your control room to cater for the imperfection of the classic far field monitors. You can fine tune your control room acoustics for accuracy, not for the resonance of honky far field speakers.
Available in custom colors. Match your décor, Contact GBody Sound Lab to order your preferred color.
Visit Wayne Jones Audio for more Details, Reviews & Photos ►
-
Description

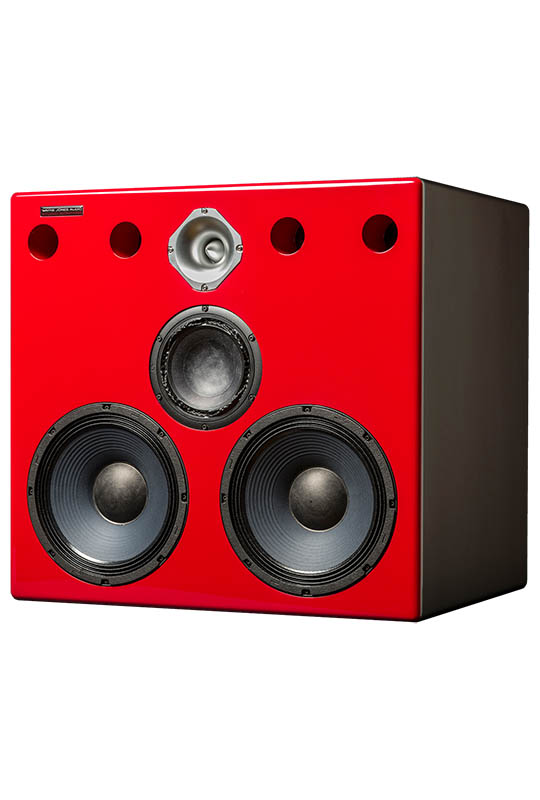

Cabinet Specifications
- Finish – Stunning 2 Pak/Matte Automotive paint finish with high gloss clear coats
- Standard finish is a high gloss red face with the rest of the monitor finished in charcoal matte clear
- Available in custom colors. Match your décor, order your preferred colour
- Woodwork 18mm MDF
Cabinet Specs – for each cabinet:
- Power – 2000 Watts RMS powered
- Channel 1: 1 x 10” Bass driver – 500 Watts RMS @4ohms
- Channel 2: 1 x 10” Bass driver – 500 Watts RMS @4ohms
- Channel 3: Mid Range – 500 Watts RMS @ 4ohms
- Channel 4: Tweeter – 500 Watts RMS @ 8ohms
- Power Amps: Four state of the art D class switch mode power amps with heat sink plates mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28 Hz
- HPF switch at 30 Hz for high level monitoring applications
- Bass Drivers: Two custom handmade 10” bass drivers, Kevlar impregnated eucalyptus pulp air-dried cones. Magnets – Massive Ferrite
- Voice coil: 3″
- Midrange 6.5″ Long stroke, ultra-low distortion. Ferrite magnet
- Tweeter: Machined aluminium bullet-style tweeter with a 1.46″ Voice coil
- Crossover points: 160 Hz 1950 Hz 2250 Hz
- Control plates: Black Steel
- Universal Mains Power in: Standard IEC
DSP & Control Plate Features:
- Inputs: XLR Analogue Balanced
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- H60 x W64.5 x D49.5 cm Approx
- 23.6 x 25.4 x 19.5 inches
Shipping Dimensions & Weights:
- Shipped as a pair on a pallet (included in shipping weight & dimensions)
- H81 x W110 x D110 cm (32 x 43.3 x 43.3 in)
- Weight 120 KG (265 lbs)
Packaged with SoundID Reference & Microphone From Sonarworks
The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program. Read More ►
Visit Wayne Jones Audio for more Details, Reviews & Photos ►
Additional information
| Weight | 120 kg |
|---|---|
| Dimensions | 110 × 110 × 81 cm |
| Shipping | Above dimensions and weight are shipping measurements for a pair of monitors. (including shipping pallet). Dimensions include shipping pallet. Shipping costs are calculated on the Checkout page. N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees. Products shipped from Melbourne, Australia. Shipped as one pair on a pallet (included in shipping weight & dimensions) International shipping is by DHL As these are custom & hand made in Australia there may be a wait time of up to 8 weeks from time of order. |
| Color | Red, Graphite, Custom Colour |
| Warranty | Warranty is 3 year limited on all parts & Labour |
