Description

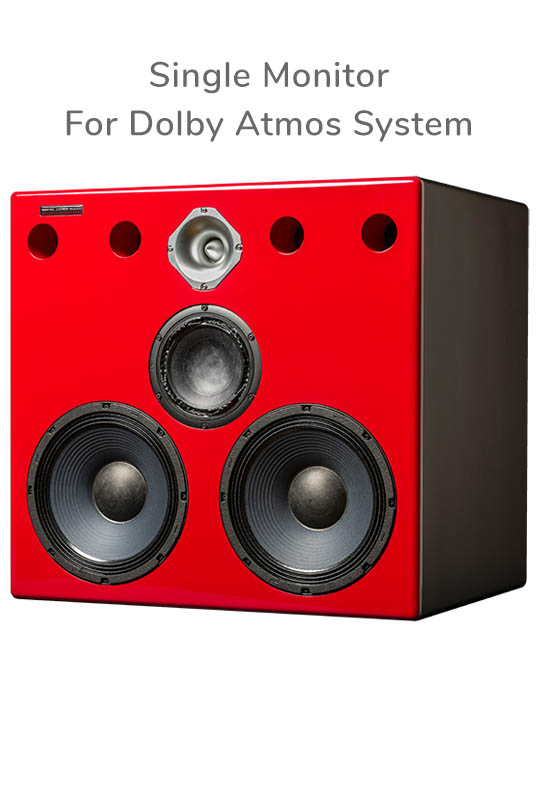

Single Monitor for expanding to Dolby Atmos system

High powered, far-field 3-way studio monitor. Two custom handmade 10” bass-mid drivers, Kevlar impregnated eucalyptus pulp air-dried cone. One mid 6.5”, long stroke, ultra-low distortion with incredible clarity. Bullet-style machined aluminium tweeter with a 1.46” voice coil. State of the art D Class switch mode power amp, 192 K SHARC DSP.

We have now catered for what’s been greatly lacking in far field monitoring systems:

• A truly new dimension in mixing/dynamics and imaging
• Relentless frequency response at loud and soft levels
• Next level “sensory perception” clarity/punch/tightness with truly intoxicating accuracy!
• Replace your big’s in the studio with these and wonder if you’ll ever use your smalls again
• Packaged with SoundID Reference Studio Edition with Mic from Sonarworks
• Finish – Stunning 2 Pak Automotive paint finish with high gloss and matte clear coats
• Standard finish is Red / Graphite

It seemed a natural progression for us to cater for the very loud and fat far field monitors commonly used in the wall or on stands in large format studio mixing rooms.

“They may be in the wall but they sound like headphones”
“The Big Reds have to be heard to be believed”

Now you don’t have to adjust your control room to cater for the imperfection of the classic far field monitors. You can fine tune your control room acoustics for accuracy, not for the resonance of honky far field speakers.

• Stunning frequency response which you need to experience to believe
• Incredible Accuracy in phase with world leading transient response
• Allowing hyper accurate compression settings within the mix
• Faster mix times
• Less mix changes
• Virtually no cross referencing required

Cabinet Specs

• Finish – Stunning 2 Pak/Matte Automotive paint finish with high gloss clear coats
• Standard finish is a high gloss red face with the rest of the monitor finished in charcoal matte clear
• Available in custom colours. Match your décor, order your preferred colour
• Woodwork 18mm MDF

Cabinet Specs – for each cabinet:

• Power – 2000 Watts RMS powered
• Channel 1: 1 x 10” Bass driver – 500 Watts RMS @4ohms
• Channel 2: 1 x 10” Bass driver – 500 Watts RMS @4ohms
• Channel 3: Mid Range – 500 Watts RMS @ 4ohms
• Channel 4: Tweeter – 500 Watts RMS @ 8ohms
• Power Amps: Four state of the art D class switch mode power amps with heat sink plates mounted into the rear of the cabinet
• Power Amp frequency: 20 Hz – 20 kHz
• Cabinet tuning: 35 Hz to 20 kHz
• Cabinet response: Half loudness Graphed down to 28 Hz
• HPF switch at 30 Hz for high level monitoring applications
• Bass Drivers: Two custom handmade 10” bass drivers, Kevlar impregnated eucalyptus pulp air-dried cones. Magnets – Massive Ferrite
• Voice coil: 3″
• Midrange 6.5″ Long stroke, ultra-low distortion. Ferrite magnet
• Tweeter: Machined aluminium bullet-style tweeter with a 1.46″ Voice coil
• Crossover points: 160 Hz 1950 Hz 2250 Hz
• Control plates: Black Steel
• Universal Mains Power in: Standard IEC

DSP & Control Plate Features:

• Inputs: XLR Analogue Balanced
• DSP – 192K SHARC processing
• USB connector for WJ Audio use only. Used for software updates
• Ethernet connection for SoundID Reference calibration file uploads
• 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
  • Inputs: XLR Analogue (center position mutes monitor)
  • Room 1: Inactive. For future development /
    Room 2: SoundID Reference calibration (preloaded with test profile)
  • Room 3: Inactive. For future development /
    30Hz HPF
• LED on Control Panel for power operation

Single Monitor Dimensions:

• H60 x W64.5 x D49.5 cm Approx
• 23.6 x 25.4 x 19.5 inches

Shipping Dimensions & Weights (shipped as single in carton):

• Shipped as a single product on a pallet (included in shipping weight & dimensions)
• H80 x W80 x D81 cm (31.5 x 31.5 x 20.1 in)
• Weight 60 KG (132.3 lbs)

Packaged with SoundID Reference & Microphone From Sonarworks

The Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program.  Read More ►

Ordering

As these are custom & hand made in Australia. If not in stock there could be a wait time of up to 8 weeks from time of order

Payment

50% required at time of order with balance payable when ready to ship

International shipping is by DHL Express

Shipping & local duties & taxes are the customers responsibility
N.B. Australia currently has free trade agreement with USA

Warranty is 3 year limited on all parts & Labour

Shipping costs are calculated on the Checkout page.
N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.
