USD $6,534.60 (exc. Tax)
USD $3,267.30 (exc. Tax)
50% OFF CLEARANCE SALE

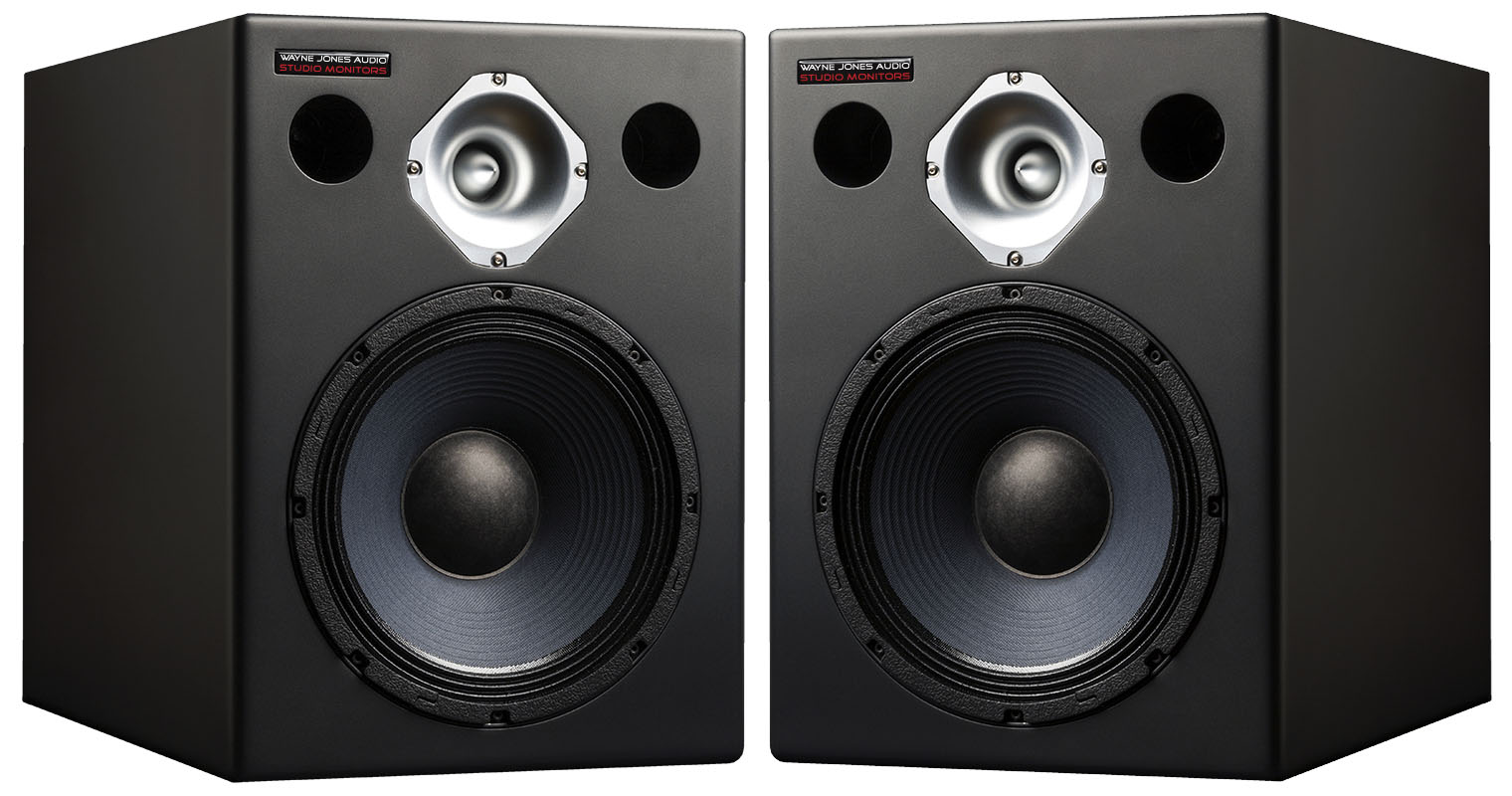

Wayne Jones Audio – 650 Watt each 1×10 Studio Monitors (pair)
Stunning Frequency Response, Incredible phase & time alignment. Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.
N.B. SoundID Reference software and microphone not included for this Sale item.
Visit Wayne Jones Audio for More Product Details, Reviews & Photos ►
Only 3 Pair Available
Control Plate Mounting:
2 x pair have rear mounted control plate, 1 x pair have top mounted control plate
Choose variation below
-
Description
Send stereo and multichannel bin files directly, via USB (For this sale item. Other products via Ethernet.), into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)
N.B. SoundID Reference software and microphone not included for this Sale item.
Cabinet Specifications
- Finish – Stunning 2 Pak Automotive paint with matt graphite color finish
- Woodwork 18mm MDF
Cabinet Specs – for each cabinet:
- Power: 650 Watts RMS powered
- Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms
- Channel 2 Tweeter: 150 Watts RMS @ 8ohms
- Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
- Power Amp frequency: 20 Hz – 20 kHz
- Cabinet tuning: 35 Hz to 20 kHz
- Cabinet response: Half loudness Graphed down to 28Hz
- HPF switch at 30 Hz
- Driver: Custom made Wayne Jones 10” driver with Aluminium cast frames, specially formulated Kevlar impregnated eucalyptus pulp cone.
- Voice coil: 3″
- Magnet: Massive Ferrite
- Tweeter: 1.46″ Voice coil
- Crossover point: 2.4 kHz
- Control plate: Black Steel
- Universal Mains Power in: Standard IEC

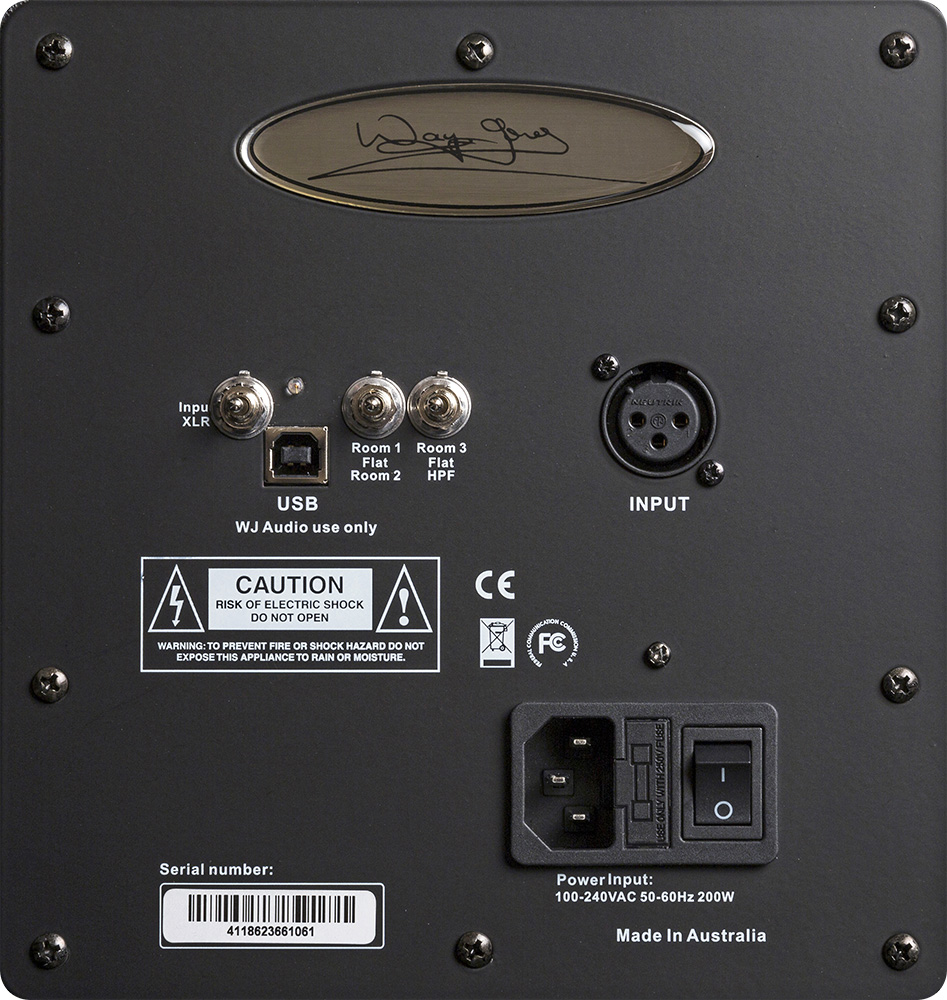

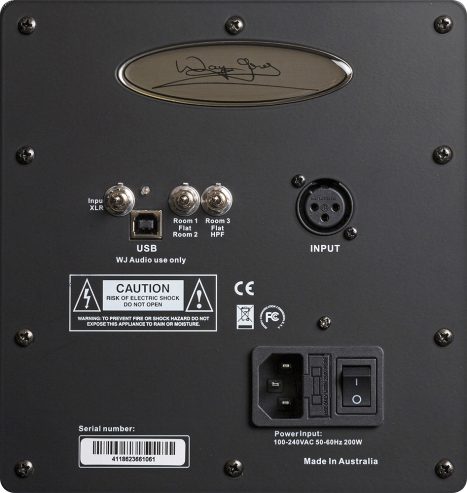

DSP & Control Plate Features
- Inputs: XLR Analogue Balanced
- DSP – 192K SHARC processing
- USB connector for WJ Audio use only. Used for software updates
- Ethernet connection for SoundID Reference calibration file uploads
- 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
- Inputs: XLR Analogue (center position mutes monitor)
- Room 1: Inactive. For future development /
Room 2: SoundID Reference calibration (preloaded with test profile) - Room 3: Inactive. For future development /
30Hz HPF
- LED on Control Panel for power operation
Single Monitor Dimensions:
- 33 x 45 x 50 cm
- 13 x 18 x 20 inches
Single Monitor Weight:
- 26.2 kg
- 58 lbs
Shipping Dimensions & Weights (shipped as pair):
Pallet included in shipping weight & dimensions.
Shipping Dimensions: W 60 x H 66 x D 80 cm = Total 206 cm, (23.6 x 26 x 31.4 Ins)
Weight: 61 kg / 135 lbs
Shipping
This product is shipped from Australia. International shipping is by DHL.
Shipping & local duties & taxes are the customers responsibility.
N.B. Australia currently has free trade agreement with USA.
Shipping costs are calculated on the Checkout page.
N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.
Warranty
3 year limited on all parts & Labour
Visit Wayne Jones Audio for More Product Details, Reviews & Photos ►
Additional information
| Weight | 61 kg |
|---|---|
| Dimensions | 80 × 66 × 60 cm |
| Shipping | Above dimensions and weight are shipping measurements for a pair (including shipping pallet) Shipping costs are calculated on the Checkout page. N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees. Products shipped from Melbourne, Australia. Shipped as a pair on a half pallet (included in shipping weight & dimensions) W 60 x H 66 x D 80 cm = Total 206 cm, (23.6 x 26 x 31.4 Ins) Weight 61 kg / 135 lbs |
| Colour | Graphite |
| Control Plate | Rear Mounted Control Plate, Top Mounted Control Plate |
