**The Wayne Jones Audio One Click SoundID Reference Upload App**
Sonarworks' SoundID Reference profile can now be stored directly within Wayne Jones Audio Studio MonitorsSend stereo and multichannel bin files directly, via Ethernet, into WJA Studio Monitors with just one click. Including time alignment and gain. With continuity of dynamics, spatial  dimension, eq and phase. Suitable for 2.0 right through to 9.1.6 multichannel bin files. (read more)
custom colors available

USD $3,719.50 (exc. Tax)

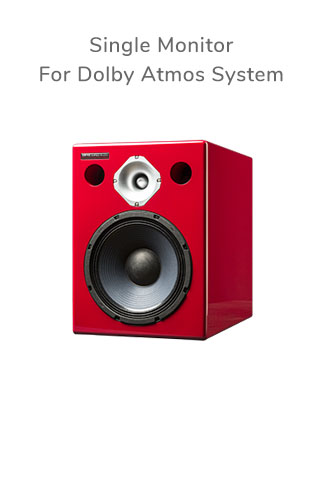

Single Monitor for expanding to Dolby Atmos system

Wayne Jones Audio – 650 Watt 1×10 Studio Monitor (single product)

Stunning Frequency Response, Incredible phase & time alignment. Undeniably Accurate, Faultless Frequency Reproduction, Incredible Depth, Clarity & Dimension.

Available in custom colors. Match your décor, Contact GBody Sound Lab to order your preferred color.

Visit Wayne Jones Audio for more Details, Reviews & Photos ►

-

SKU: 1934-V-single Category:

Description

Cabinet Specifications

Cabinet Specs:

  • Finish – Stunning 2 Pak Automotive paint finish with high gloss clear coats
  • Standard finish choices are Red, Graphite, Black & White
  • Available in custom colors. Match your décor, order your preferred color
  • Woodwork 18mm MDF

Cabinet Specs – for each cabinet:

  • Power: 650 Watts RMS powered
  • Channel 1 Bass-Mid: 500 Watts RMS @ 4 ohms
  • Channel 2 Tweeter: 150 Watts RMS @ 8ohms
  • Power Amp: State of the art D Class switch mode 2 channel power amp with heat sink plate mounted into the rear of the cabinet
  • Power Amp frequency: 20 Hz – 20 kHz
  • Cabinet tuning: 35 Hz to 20 kHz
  • Cabinet response: Half loudness Graphed down to 28Hz
  • HPF switch at 30 Hz
  • Driver: Custom made Wayne Jones 10” driver with Aluminium cast frames, specially formulated Kevlar impregnated eucalyptus pulp cone.
  • Voice coil: 3″
  • Magnet: Massive Ferrite
  • Tweeter: 1.46″ Voice coil
  • Crossover point: 2.4 kHz
  • Control plate: Black Steel
  • Universal Mains Power in: Standard IEC

DSP & Control Plate Features

  • Inputs: XLR Analogue Balanced
  • DSP – 192K SHARC processing
  • USB connector for WJ Audio use only. Used for software updates
  • Ethernet connection for SoundID Reference calibration file uploads
  • 3 Toggle switches with selections (centre position is Flat – undeniably accurate)
    • Inputs: XLR Analogue (center position mutes monitor)
    • Room 1: Inactive. For future development /
      Room 2: SoundID Reference calibration (preloaded with test profile)
    • Room 3: Inactive. For future development /
      30Hz HPF
  • LED on Control Panel for power operation

Single Monitor Dimensions:

  • 33 x 45 x 50 cm
  • 13 x 18 x 20 inches

Single Monitor Weight:

  • 26.2 kg
  • 58 lbs

Shipping Dimensions & Weights (shipped as single in carton):
Pallet included in shipping weight & dimensions.
H51 x W40 x D58 cm (20.5 x 15.8 x 22.3 Ins)
Weight 26Kg each (57.4 lbs)

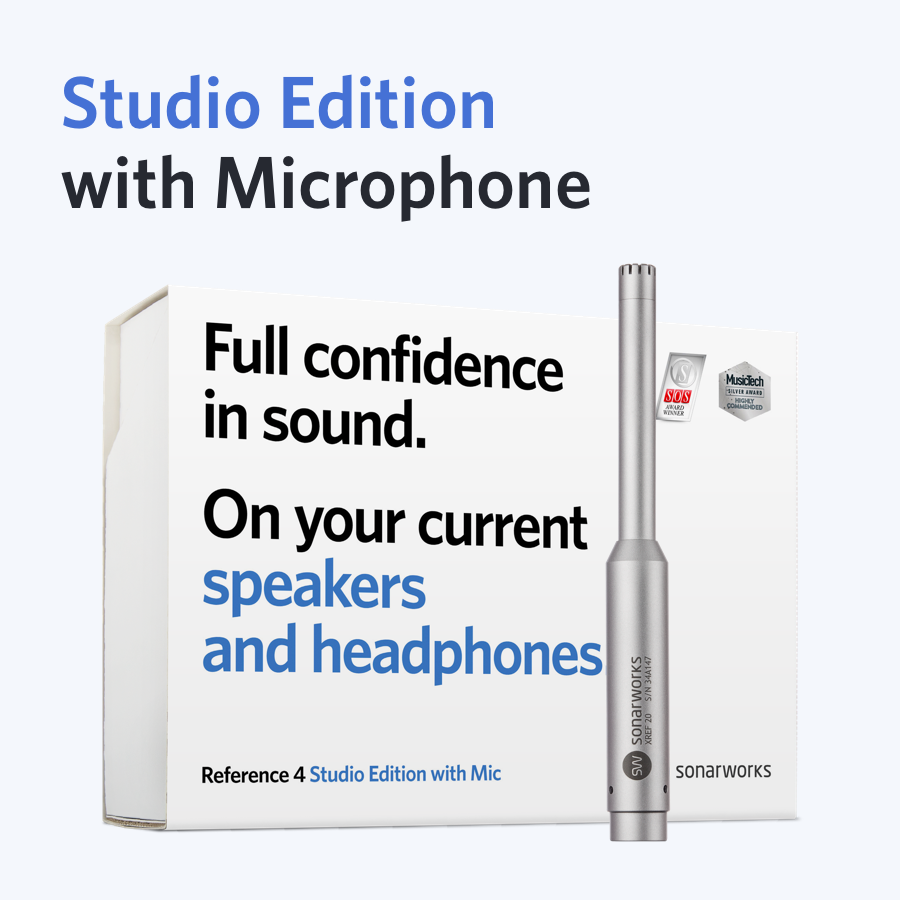

Packaged with SoundID Reference & Microphone From Sonarworks

SoundID Reference with Mic from Sonarworks now packaged with Wayne Jones Audio Studio MonitorsThe Wayne Jones Audio Studio Monitors are incredibly accurate in all areas. For potential room acoustic issues we bundle SoundID Reference with mic from Sonarworks measurement and correction program.  Read More ►

Visit Wayne Jones Audio for more Details, Reviews & Photos ►

Additional information

Weight 26 kg
Dimensions 58 × 40 × 51 cm
Shipping

Above dimensions and weight are shipping measurements for a single of monitor.

Shipping costs are calculated on the Checkout page.

N.B. The buyer is responsible for paying any additional costs such as duties, taxes, and customs clearance fees.

Products shipped from Melbourne, Australia.

Shipped as single product in carton (included in shipping weight & dimensions)
Shipping Dimensions: H51 x W40 x D58 cm (20.5 x 15.8 x 22.3 Ins)
Shipping Weight: 26Kg each (57.4 lbs)

International shipping is by DHL

As these are custom & hand made in Australia there may be a wait time of up to 8 weeks from time of order.

Color

Red, Graphite, White, Order Custom

Warranty

Warranty is 3 year limited on all parts & Labour
